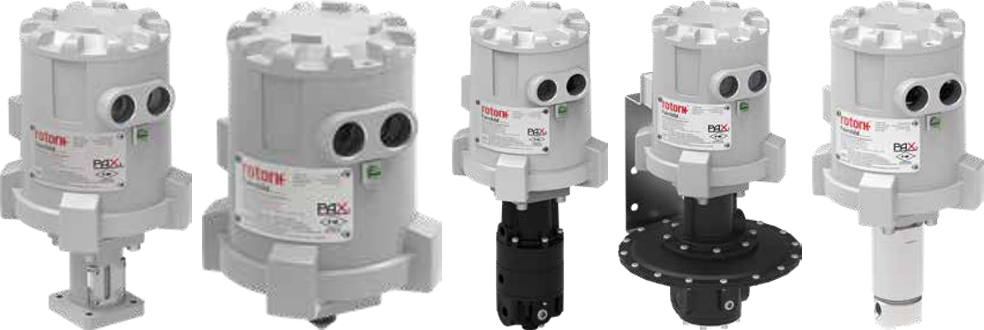

The PAX1 is a low voltage DC or AC powered regulator controller with a rotating linear thrust rod output, optimised to control regulators up to 25 mm (1") stroke. The PAXL converts the rotating linear output of the PAX1 to a bi-directional non-rotating linear output, optimised for automation of small valves, pumps and other devices. Both can be used in hazardous areas thanks to the fully-sealed explosionproof enclosure.
| Models | PAX1 (regulator controller), PAXL (non-rotating linear output) |
| Operation Speed | Up to 60 mm/min (2.36 inch/min) |
| Maximum Thrust | 2,890 N (650 lbf) |
| Control Pressures | Up to 20,684 kPa (3,000 psig) |
| IP Rating | IP66 / IP68 |
| NEMA Rating | Type 4X / Type 6P |
| Hazardous Area Certifications | FM, CSA, CCC/NEPSI, ATEX, IECEx, UKEX |
| Ambient Temperature Range | -40 to +80 °C (-40 to +176 °F) |
| Standby Power | Less than 1 Watt power consumption during standby, ideal for remote solar applications |
| Option | Optional isolated 4-20 mA position feedback |
| Configuration | Configurable stroke limits |
