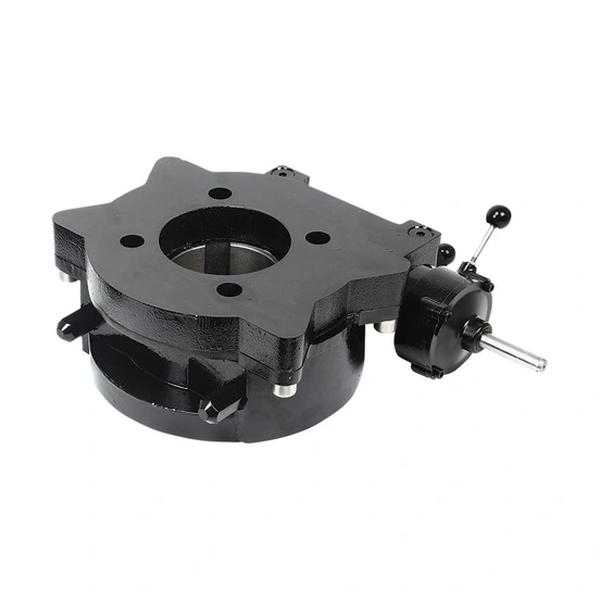

Rotork ILG-D Override Part-turn Gear Operator (for Double-acting Pneumatic Actuators)

Name: Rotork ILG-D Override Part-turn Gear Operator (for Double-acting Pneumatic Actuators)
Brand: Rotork

The Rotork ILG-D range is a manual declutchable sandwich override part-turn gearbox for double-acting pneumatic actuators. Torque goes up to 17,000 Nm (12,539 lbf.ft).

Rotork ILG-D Override Part-turn Gear Operator (for Double-acting Pneumatic Actuators) 2

Specifications

Type	Manual declutchable sandwich override part-turn gearbox
Applicable Actuator	Double-acting pneumatic actuators
Torque Range	Up to 17,000 Nm (12,539 lbf.ft)
Ratios	35:1 to 468:1
Construction	Protected input shaft, cast iron housing, axial needle bearings
Protection	IP65
Options	High and low temperature, ISO drive coupling, solenoid valve to evacuate air automatically, IP67
