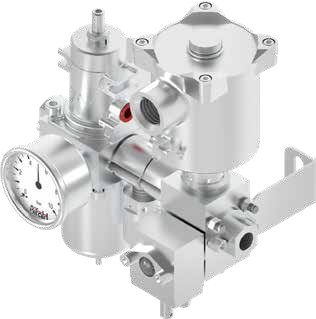

The Rotork modular manifold system allows fast configuration and delivery of accurate and reliable instrumentation configurations. It is made of 316L stainless steel with a 360° fully rotational solenoid housing and a patented stacker system, with flow rates from 0.73 Cv to 11.2 Cv.
| Material | 316L stainless steel |
| Pressure Range | 0 - 10 bar (0 - 145 psig) |
| Flow Rate | From 0.73 Cv up to 11.2 Cv (XS04-04 up to XS16-16) |
| Ports | 1/4" up to 1" NPT & BSP (XS04-04 up to XS16-16) |
| Solenoid Classification | Ex d IIC, Ex emb IIC, Ex ia IIC |
| Protection | IP66, IP67 and NEMA 4X |
| Features | 360° fully rotational solenoid housing, worldwide solenoid approvals, booster manifolds available, patented stacker system, compact low cost version, high system flow |
