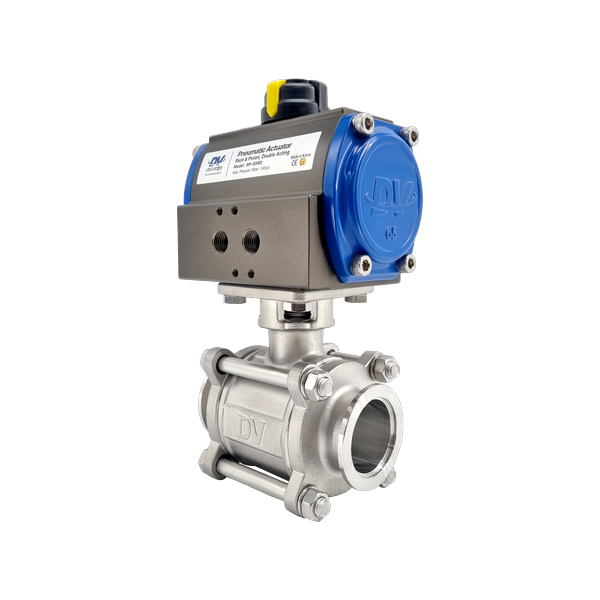

Vacuum 2WAY Pneumatic Ball Valve (SUS316, Double Acting)
Model: PVVP-01
PVVP-01 is a vacuum 2WAY ball valve combining a SUS316 3PC body with a pneumatic double-acting actuator. It supports sizes from NW16 up to NW100 (ISO) and undergoes 100% helium leak testing prior to shipment, and is used for automatic shutoff of vacuum lines in semiconductor, display, solar, and laboratory processes.
Features
- Compact design for easy installation in confined spaces
- 3PC structure for easy installation and maintenance
- Internal oil removal (CLEAN AND OIL FREE)
- 100% helium leak tested
- Custom manufacturing available per customer needs
- Available in large sizes NW16-100 (ISO)
- First in Korea to apply ISO5211 Direct Mounting Pad
Frequently Asked Questions
- How do I choose between ball valves and bellows valves in vacuum lines?
- Ball valves are suitable for general gas supply lines or exhaust lines thanks to full-port design with low flow loss and fast operation. Bellows valves have the stem seal isolated from the atmosphere by a metal bellows, advantageous in high-vacuum and corrosive gas environments, but with complex structure and high price. Choose ball valves for general HV lines, bellows valves for high-vacuum, long-life, and corrosive environments.
- How do I choose between double-acting and single-acting?
- Double-acting offers fast response and large torque margin, suited for high-speed and high-frequency repetitive control; however, position retention is uncertain when pneumatic pressure is lost. Single-acting enables fail-safe return when air is lost, suited for lines where safety shutoff is critical. Choose double-acting for general automatic control, single-acting for lines where safety such as chamber contamination prevention is the priority.
- What accessories can be attached to a pneumatic valve?
- We supply integrated packages combining various accessories to meet field requirements. Typical accessories include limit switch boxes for DCS/PLC feedback of open/close status, solenoid valves for remote sequence control, and air filter regulators for particulate/moisture removal and pressure stabilization.
- What level of vacuum can it be used to?
- PVVP-01 is designed for automatic shutoff in the high vacuum (HV) range. The actual achievable vacuum varies greatly with chamber volume, pumping system, operating temperature, and gas type, and separate specification review is required for environments requiring ultra-high vacuum (UHV). Let us know your operating environment and we will guide you on suitability and options.
