| Fitting | 1/4" VCR Male (default) |

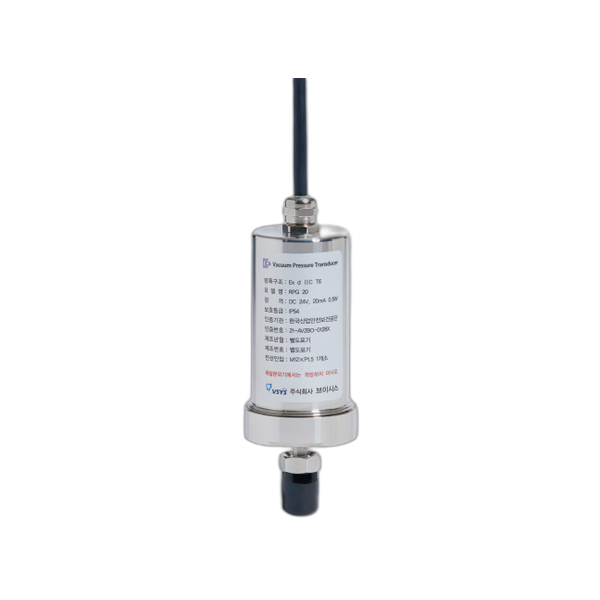

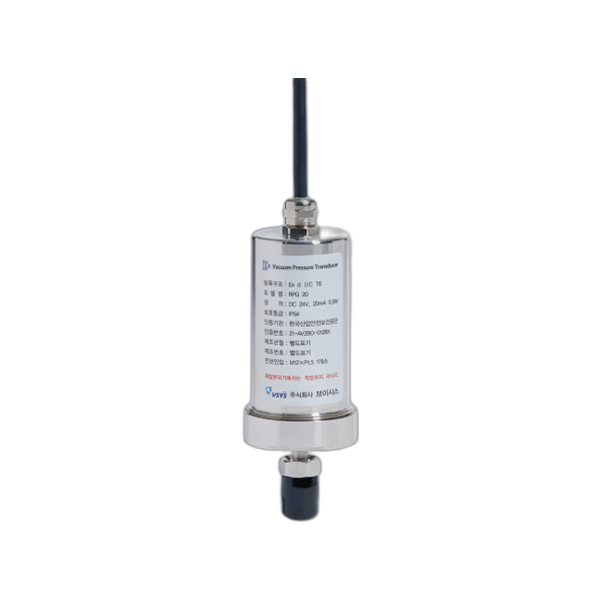

| Model | RPG20-S (Vacuum Pressure Transducer) |
| Pressure Range | 5*10^-3 ~ 5 Torr (Log-Linear) |
| Power Supply | 24VDC, 20mA (Normal) / 10~35VDC, Max 100mA |
| Output Signal | 1~5V, 4~20mA (option) |
| Measuring Principle | Capacitance diaphragm sensor |
| Accuracy | within ±0.5% of reading |
| Max Pressure / Burst | Max admissible 400kPa / Burst 800kPa |
| Ambient Operating Temperature | -20°C ≤ Ta ≤ 40°C |
