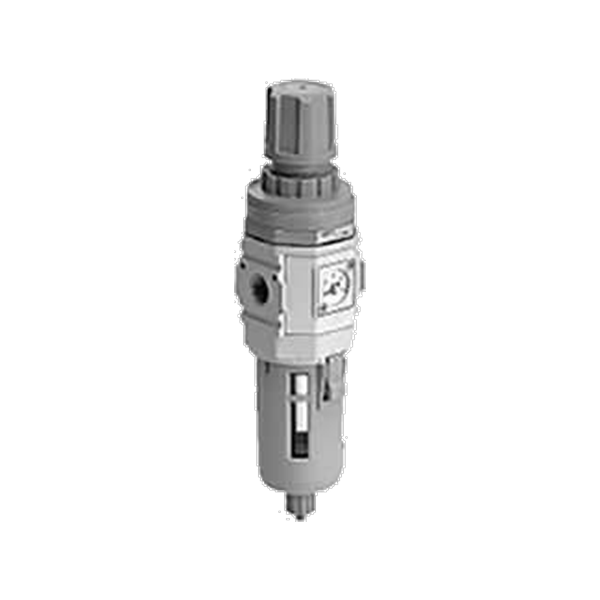

The W3000-W is a filter regulator that combines a filter and a regulator, removing foreign matter from compressed air and setting pressure within 0.05 to 0.85 MPa. Port sizes are 1/4, 3/8 and 1/2.
| Working Fluid | Compressed air |
| Maximum Working Pressure | 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Ambient/Fluid Temperature | 5 to 60 °C |
| Filtration Rating | 5 μm or 0.3 μm |
| Set Pressure | 0.05 to 0.85 MPa |
| Relief | With relief mechanism |
| Drain Capacity | 45 cm³ |
| Port Size | Rc/NPT/G 1/4, 3/8, 1/2 |
| Weight | 0.6 kg |
| Standard Accessories | Pressure gauge, bowl guard |
