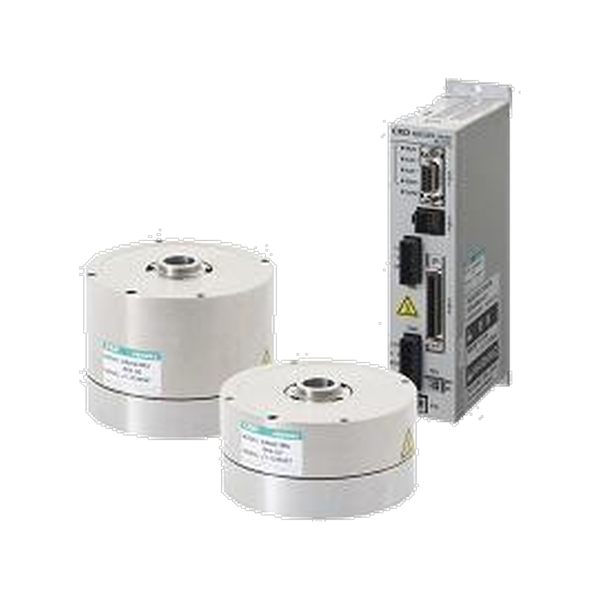

The ABSODEX AX6000M is a direct drive actuator with an 80 mm diameter, available in two models with a maximum torque of 1.2 N·m (AX6001M) and 3.0 N·m (AX6003M). It is used with the MU driver.
| Model | AX6001M / AX6003M |
| Max. Output Torque | 1.2 / 3.0 N·m |
| Continuous Output Torque | 0.4 / 1.0 N·m |
| Max. Rotation Speed | 240 rpm (80 rpm or less in continuous rotation) |
| Allowable Axial Load | 600 N |
| Allowable Moment Load | 5 N·m |
| Index Accuracy | ±90 sec |
| Repeatability | ±10 sec |
| Resolution | 540672 P/rev |
| Ambient Operating Temperature | 0 to 40 °C |
| Operating Ambient Humidity | 20 to 85% RH, no condensation |
| Weight | 1.2 / 1.8 kg (1.4 / 2.0 kg with mounting base) |
| Protection Rating | IP20 |
| Supported Driver | MU driver |
