CKD TSF/TST Torque Saver (Index Drive Option)

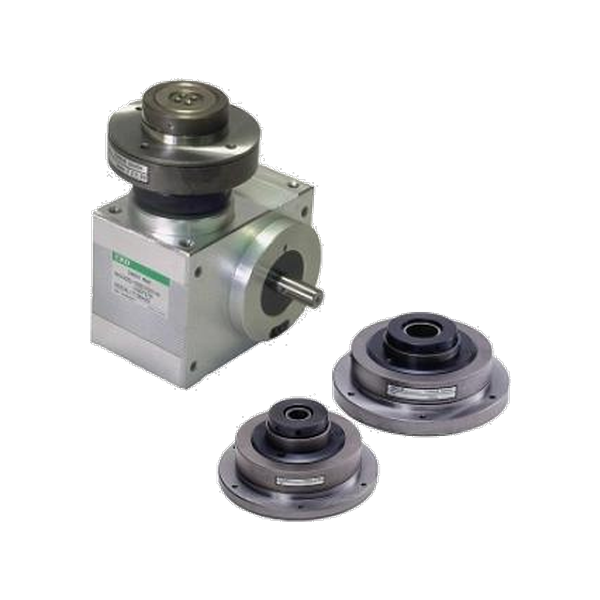

The TSF and TST are torque saver options mounted on CKD index drives. The release torque is set with an adjusting nut, and sizes range from TSF2 to TSF18 and TST6 to TST11.

CKD TSF/TST Torque Saver (Index Drive Option)CKD TSF/TST Torque Saver (Index Drive Option) 2

Specifications

SizeTSF2 to TSF18 / TST6 to TST11
Applicable Index DriveRGIS, RGIL, PCIS (TSF) / RGIT (TST)
Release Torque Adjusting Range2.94 to 58.9 N·m (TSF5) / 100 to 600 N·m (TST11)
Allowable Thrust Force7850 N (TSF5) / 9500 N (TST11)
Allowable Radial Force3430 N (TSF5) / 3800 N (TST11)
Allowable Bending Moment147 N·m (TSF5) / 330 N·m (TST11)
Weight1.34 kg (TSF5) / 16.6 kg (TST11)
