CKD VSX/VSXM Vacuum Ejector Unit (10.5 mm Width Integrated)

Model: VSX/VSXM

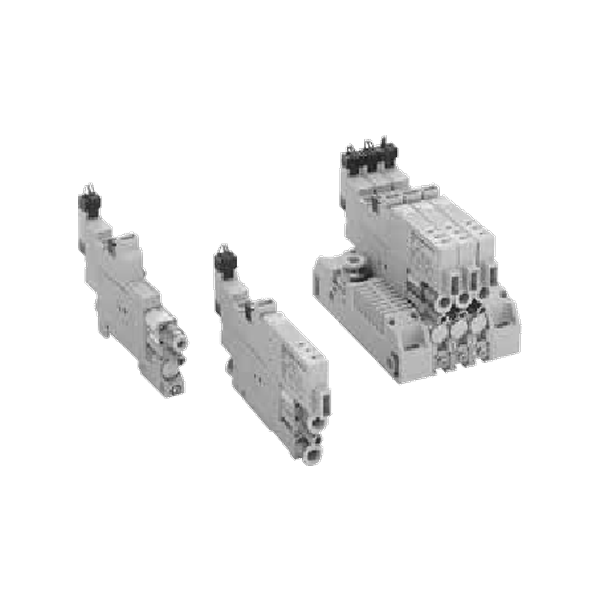

The VSX is a 10.5 mm wide integrated vacuum ejector unit, and the VSXM is its manifold version. Nozzle diameters range from ø0.5 to ø1.0 and the working pressure is 0.3 to 0.7 MPa.

CKD VSX/VSXM Vacuum Ejector Unit (10.5 mm Width Integrated) VSX/VSXM

CKD VSX/VSXM Vacuum Ejector Unit (10.5 mm Width Integrated) VSX/VSXM 2

Specifications

Working Fluid	Air
Working Pressure	0.3 to 0.7 MPa
Ambient Operating Temperature	5 to 50 °C
Nozzle Diameter	ø0.5, ø0.7, ø1.0
Pilot Valve	Direct acting poppet valve
Rated Voltage	24 VDC / 100 VAC (pilot valve)
Power Consumption	1.2 W (24 VDC, with LED) / 1.5 VA (100 VAC, with LED)
Proof Pressure	1.05 MPa (main valve)
Lubrication	Not required (main valve)
Filtration Rating	10 μm (vacuum filter)
Element Material	PVF (vacuum filter)
Filtration Area	502 mm² (vacuum filter)
Replacement Filter Element	VSX-E (vacuum filter)

Frequently Asked Questions

What nozzle diameters are available?: Choose from ø0.5, ø0.7 and ø1.0.
What operating types are available for the vacuum generating valve?: Normally closed and self-hold types are available.
What pressure switch outputs are available?: Digital display versions offer two NPN outputs or one NPN output combined with analog output. An analog-output-only version is also available.
