What nozzle diameters are available?

The available nozzle diameters are ø0.5, ø0.7 and ø1.0.

What is the working pressure range?

It uses air as the working fluid at a working pressure of 0.3 to 0.7 MPa.

What are the pilot valve voltage and power consumption?

The rated voltage is 24 VDC and power consumption is 0.55 W including the LED.

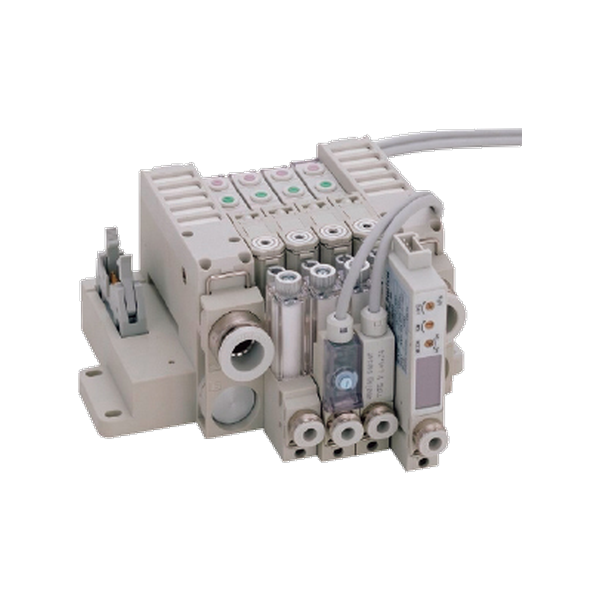

CKD VSZM Manifold Dedicated Vacuum Ejector Unit (11 mm Pitch)

Model: VSZM

The VSZM is a manifold-only vacuum ejector unit arranged at an 11 mm pitch. Nozzle diameters range from ø0.5 to ø1.0 and it is driven by a 24 VDC direct acting pilot valve.

CKD VSZM Manifold Dedicated Vacuum Ejector Unit (11 mm Pitch) VSZM

CKD VSZM Manifold Dedicated Vacuum Ejector Unit (11 mm Pitch) VSZM 2

Specifications

Working Fluid	Air
Working Pressure	0.3 to 0.7 MPa
Ambient/Fluid Temperature	5 to 50 °C
Nozzle Diameter	ø0.5, ø0.7, ø1.0
Pilot Valve	Direct acting pilot valve
Rated Voltage	24 DC
Power Consumption	0.55 W (with LED)
Proof Pressure	1.05 MPa (switching valve)
Lubrication	Not required (switching valve)
Filtration Rating	10 μm (vacuum filter)
Element Material	PVF (vacuum filter)
Filtration Area	660 mm² (vacuum filter)
Replacement Filter Element	VSZM-E (vacuum filter)
Wiring Method	D sub-connector, flat cable connector

Frequently Asked Questions

What nozzle diameters are available?: The available nozzle diameters are ø0.5, ø0.7 and ø1.0.
What is the working pressure range?: It uses air as the working fluid at a working pressure of 0.3 to 0.7 MPa.
What are the pilot valve voltage and power consumption?: The rated voltage is 24 VDC and power consumption is 0.55 W including the LED.
