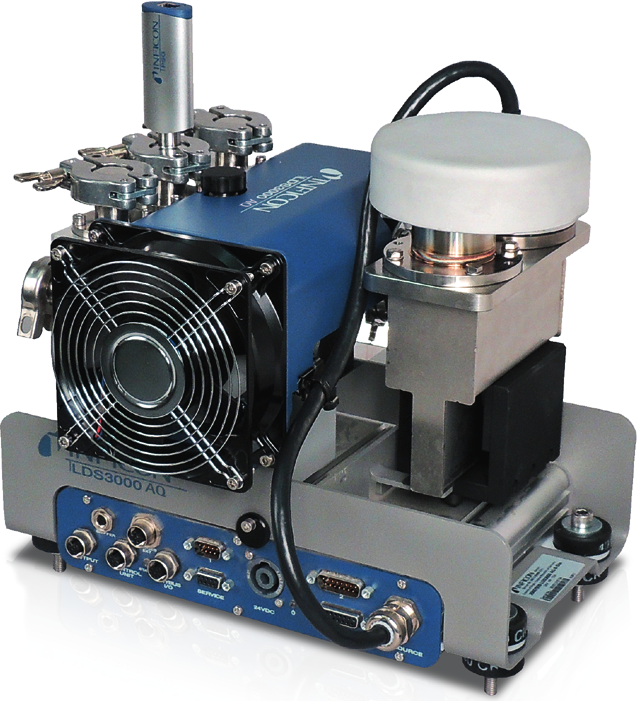

The LDS3000 AQ is a leak detector for accumulation testing. It runs on low-cost forming gas or helium as the tracer gas and closes the gap between air testing (pressure drop testing) and helium vacuum testing. Test results are not affected by temperature or moisture, which makes it well suited to finding liquid leaks such as oil or water leaks.
| Detection Method | Accumulation method: the part under test is filled with tracer gas and placed in an accumulation chamber, and the leak rate is determined from the quantity of tracer gas accumulated in the chamber |
| Tracer Gas | Forming gas (95% nitrogen, 5% hydrogen) or helium |
| Measurement Range | 5 decades |
| Test Chamber Pressure | Atmosphere (standard pressure) |
| Response Time | Less than 1 s |
| Detection System | 180° sector field mass spectrometer |
| Start Time | Less than 3 min |
| Field Buses Available | PROFIBUS, PROFINET, DeviceNet, EtherNet/IP |
| Connections | ISO-KF DN16 |
| Ion Source | 2 yttrium/iridium long-life cathodes (3 year warranty) |
| Digital Inputs/Outputs | 10 inputs, 8 outputs (when used with I/O1000 module) |
| Control Input | PLC compatible (max. 35 V) |
| Recorder Output | lin/log 0 - 10 V |
| Serial Interface | RS232, RS485 or fieldbus systems |
| Dimensions (L × W × H) | 330 × 240 × 280 mm |
| Scope of Supply | LDS3000 AQ includes the inlet system and special accumulation software. An I/O1000 module or BM1000 module and a data cable are necessary for operation |
