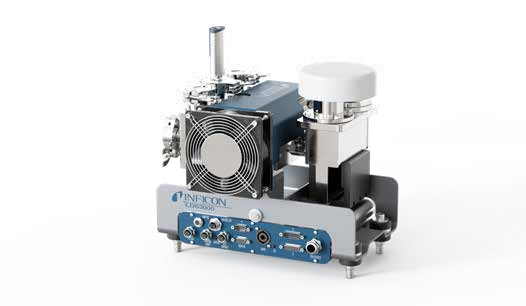

The LDS3000 is a compact helium and hydrogen leak detector for system leak detection. It features the EcoBoost function that reduces helium consumption by up to 90%, and connects easily to equipment through analog and digital interfaces and several fieldbus systems. It is widely used in automotive and battery manufacturing and in refrigeration and air conditioning.
| Minimum Detectable Leak Rate of Helium | Ultra mode ≤ 1·10⁻¹¹ mbar l/s (helium pumping speed above 5 l/s) / Fine mode ≤ 5·10⁻¹¹ mbar l/s (helium pumping speed 1.7 l/s) / Gross mode ≤ 1·10⁻⁹ mbar l/s / Sniffer mode ≤ 1·10⁻⁷ mbar l/s |
| Units of Measurement (Options) | mbar l/s, Pa m³/s, atm cc/s, g/a, ppm |
| Maximum Permissible Inlet Pressure | Gross mode 18 mbar / Fine mode 0.9 mbar / Ultra mode 0.2 mbar |
| Response Time | Less than 1 s |
| Ion Source | 2 yttrium/iridium long-life cathodes (3 year warranty) |
| Digital Inputs/Outputs | 10 inputs, 8 outputs (when used with I/O1000 module) |
| Control Input | PLC-compatible (max. 35 V) |
| Lin/Log Recorder Output | 0 - 10 V |
| Serial Interface | RS232, RS485 or field bus systems |
| Dimensions (L × W × H) | 330 × 240 × 280 mm |
| Ambient Temperature (Operation) | 10 - 45 °C |
| Warranty | 2 years (3 years on ion source) |
| Helium Saving Function | EcoBoost function saves up to 90% of helium in the detection process |
| Calibration | Fast calibration within 20 seconds |
| Required Items for Operation | An I/O1000 module or BM1000 module and a data cable are necessary for the operation of an LDS3000 |
| Certification | cTÜVus Certified (NRTL tested) |
