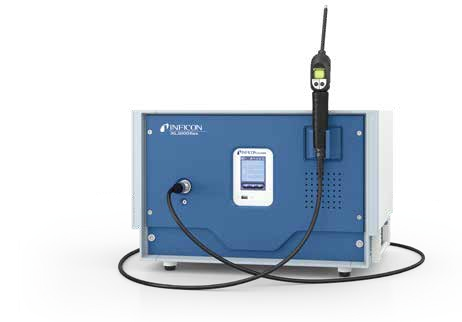

The XL3000flex is a high speed sniffer leak detector for the refrigeration, air conditioning and automotive industries. The 3000 sccm high-flow technology and the mass spectrometer sensor give high sensitivity even over large distances, and switching to the 300 sccm low flow pinpoints the leak location. Its wide range of communication interfaces makes it suitable for robot applications.
| Measuring Method | Helium and hydrogen sniffer leak detection with a mass spectrometer sensor |
| Measurable Gases | Helium, hydrogen (simple changeover from helium to hydrogen possible) |
| Lowest Detectable Leakage Rate for Helium / Hydrogen | 2×10⁻⁶ mbar l/s to 2×10⁻⁷ mbar l/s (range covering high flow and low flow) |
| Gas Flow | High flow 3000 sccm / low flow 300 sccm (changeover at the push of a button) |
| Response Time (High Flow and Low Flow) | Less than 1 s |
| Ion Source | Two long-life yttria-coated iridium filaments (three-year warranty on the ion source) |
| Run-up Time | 150 s |
| Power | 280 VA |
| Operating Voltage | 100-120 V (ac) 50/60 Hz - 230 V (ac) 50/60 Hz |
| Main Fuse | 2 × T6, 3 A 250 V |
| Interfaces | USB. With IO1000 accessories: RS232, freely configurable digital inputs and outputs, analog output. With BM1000 accessories: fieldbus interfaces PROFIBUS, PROFINET, DeviceNet, EtherNet/IP |
| Display and Operation | Touchscreen; measurement results can be saved and exported via USB flash drive |
| Sniffer Probe | Leakage rate shown on the display of the sniffer probe handle |
| Sniffer Line (Optional) | SL3000XL: 3 m / 5 m / 10 m / 15 m. Adapter for third-party sniffer lines available separately |
