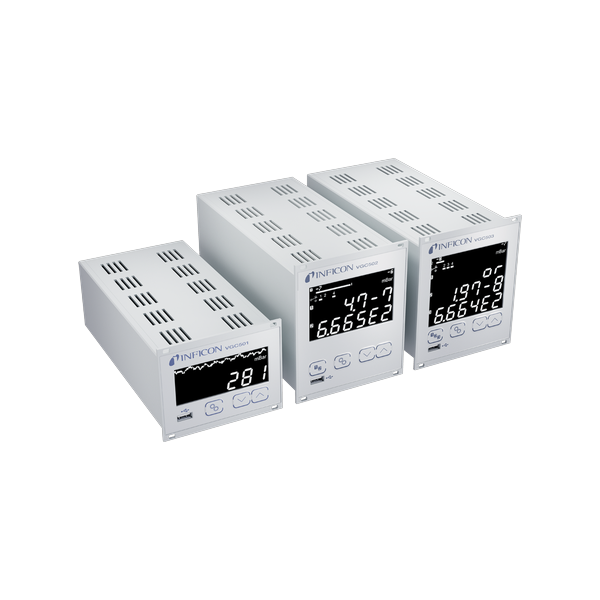

VGC50x are vacuum gauge controllers that read INFICON active gauges on 1 to 3 channels. They identify gauges automatically, show pressure and setpoint status, log data to a USB drive and communicate via Ethernet.
| Measuring Channels | VGC501: 1 / VGC502: 2 / VGC503: 3 |
| Display | LCD, LED backlight |
| Measuring Range | 10⁻¹⁰ … 1500 mbar (10⁻¹⁰ … 1125 Torr) |
| Setpoint Relays | VGC501 2, VGC502 4, VGC503 6, contacts 30 V(ac)/1 A, 60 V(dc)/0.5 A |
| Power Supply | 100 … 240 V(ac), 50 … 60 Hz |
| Power Consumption | VGC501 ≤45 W, VGC502 ≤65 W, VGC503 ≤90 W |
| Operating Temperature | +5 … +50 °C |
| Analog Output | VGC501 1, VGC502 2, VGC503 3 (0 … 10.3 V), programmable output VGC502/503 1 each |
