Model: V Series

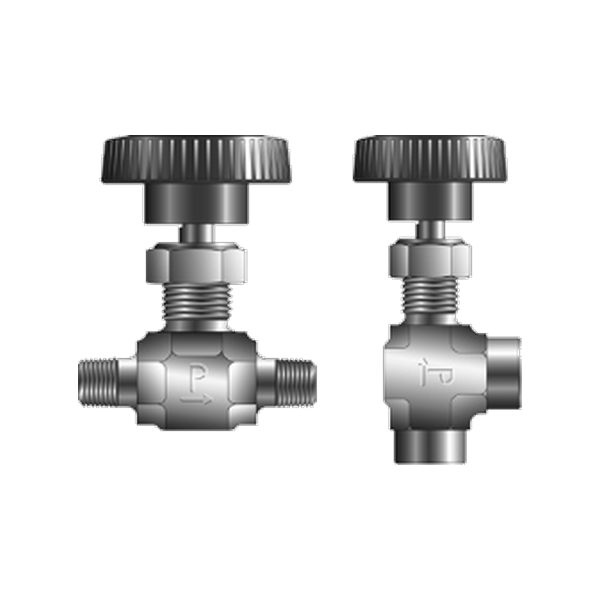

The V Series is a needle valve for fine flow control in instrumentation lines. It comes in five sizes from V2 to V12 in inline and angle patterns, with a body of SS316, brass, steel or Monel 400.
| Pressure Rating | 5,000 psig (345 bar) CWP (SS316) / 3,000 psig (207 bar) CWP (brass, steel, Monel 400) |
| Temperature Rating | -54 to 232 °C (stainless steel, Monel 400) / -54 to 204 °C (brass) / -29 to 177 °C (steel) |
| Orifice | 2.0 to 7.9 mm |
| Cv Value | 0.12 to 1.90 |
| Port Size | 1/8" to 3/4" / 3 to 12 mm |
| Stem Seal | PTFE / NBR / EPDM / FKM |
