Model: VQ Series

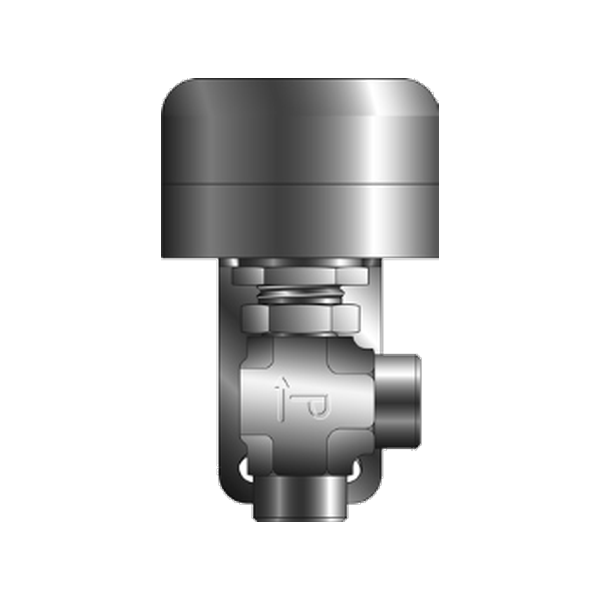

The VQ actuated valve is a compact instrumentation valve opened and closed by a pneumatic actuator. It comes in three actuation types, normally closed, normally open and double acting, with a stainless steel or brass body.
| Pressure Rating | 600 psig (41 bar) CWP (VQ4 normally closed) / 500 psig (35 bar) CWP (VQ6 normally closed) / 450 psig (31 bar) CWP (normally open, double acting) |
| Temperature Rating | -29 to 93 °C (PTFE stem tip) / -54 to 93 °C (PCTFE stem tip) |
| Operation | Pneumatic actuated, normally closed / normally open / double acting |
| Stem Seal | FKM / NBR / EPDM / highly fluorinated FKM |
| Body Material | Stainless steel / brass |
