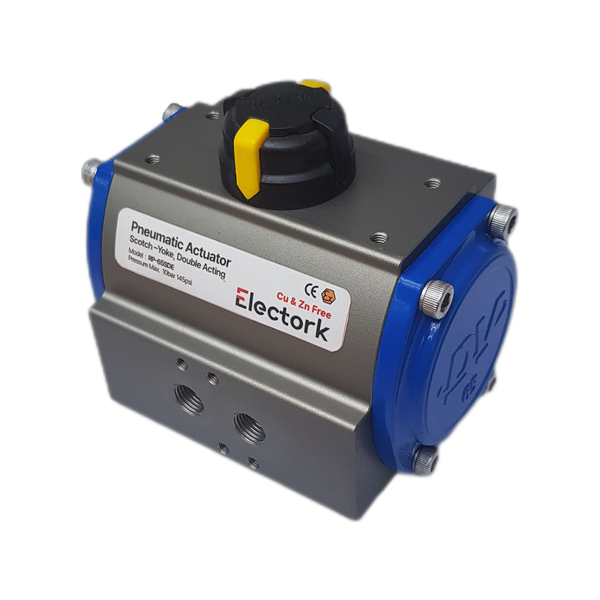

ELECTORK Pneumatic Actuator for Secondary Battery Equipment

Model: RP-65SDE

ELECTORK is a pneumatic actuator series for secondary battery equipment. It is built with parts free of copper (Cu) and zinc (Zn) so that copper and zinc particles are not released into the process, and it automates ball valves and butterfly valves. The series includes scotch-yoke and rack-and-pinion designs in single-acting and double-acting versions; the representative model RP-65SDE is a scotch-yoke, double-acting unit.

Features

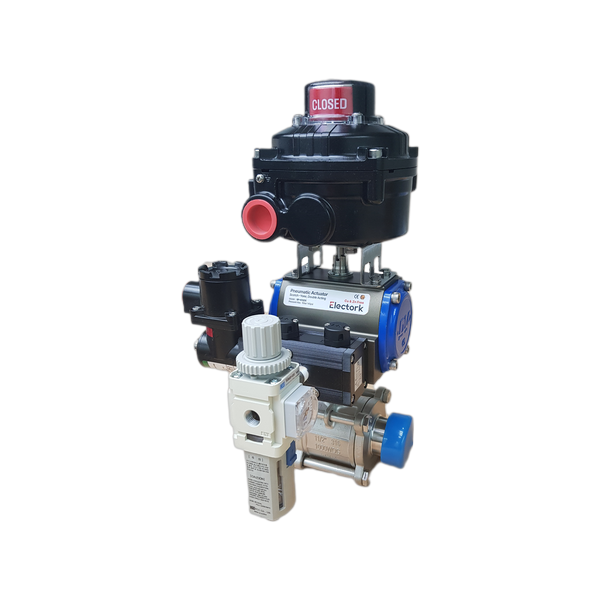

ELECTORK Pneumatic Actuator for Secondary Battery Equipment RP-65SDEELECTORK Pneumatic Actuator for Secondary Battery Equipment RP-65SDE 2ELECTORK Pneumatic Actuator for Secondary Battery Equipment RP-65SDE 3

Specifications

SeriesELECTORK
Type (by product)Scotch yoke, rack and pinion / single acting, double acting
ApplicationSecondary battery equipment (process valves for vacuum generation and electrolyte filling)
Compatible valvesBall valves, butterfly valves
RP-65SDE typeScotch yoke, double acting
RP-65SDE maximum supply pressure10 bar (145 psi)
RP-65SDE mountingISO 5211 F03/05/07
RP-65SDE air connectionNAMUR
RP-65SDE optionsHandwheel, magnetic sensor, epoxy coating, ATEX/SIL
Other models, torque, temperature, materialsOn request
