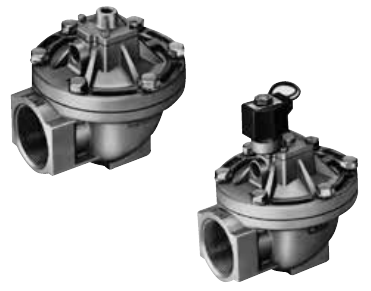

PD2 is an air operated pilot operated 2-port valve for dust collectors, and PDV2 adds a solenoid valve. They are used for air (no corrosive gas), with Rc2 ports.
| Working Fluid | Air (no corrosive gas) |
| Valve Structure | Pilot operated poppet, air operated (PD2) / with solenoid valve (PDV2) |
| Working Pressure Differential | Min. 0.1 MPa, max. 0.7 MPa |
| Max. Working Pressure | 0.7 MPa |
| Proof Pressure | 1.5 MPa (water pressure) |
| Fluid Temperature | -10 to 60 °C (-10 to 100 °C for FKM seal) (no freezing) |
| Ambient Temperature | -10 to 60 °C (-10 to 100 °C for FKM seal) |
| Valve Seat Leakage | 50 cm³/min or less |
| Port Size | Rc2 |
| Orifice Size / Cv | 53 mm / 62 |
| Pilot Port Size | Rc1/4 (PD2) |
| Weight | PD2: 1.9 kg; PDV2: 2.1 kg |
| Mounting Orientation | Unrestricted |
| Rated Voltage (PDV2) | 100 VAC (50/60 Hz) / 110 VAC (60 Hz), 200 VAC (50/60 Hz) / 220 VAC (60 Hz), 12 VDC, 24 VDC, 48 VDC, 100 VDC |
