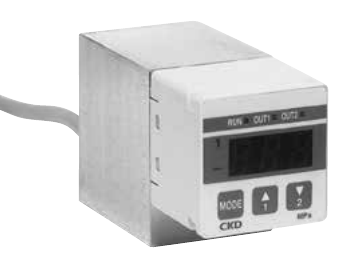

CPD is an electronic pressure switch with a digital display for coolant and similar uses. The pressure adjusting range is 0 to 7 MPa and the port is Rc1/4. It uses a stainless steel diaphragm pressure sensor and has NPN transistor open collector output at 2 points.
| Pressure Sensitive Element | Stainless steel diaphragm pressure sensor |
| Working Fluid | Coolant / other non-corrosive fluids |
| Rated Pressure | 0 to 7 MPa |
| Proof Pressure | 10.5 MPa (water pressure) |
| Pressure Adjusting Range | 0 to 7 MPa |
| Fluid Temperature | 0 to 50 °C |
| Ambient Temperature | 0 to 50 °C |
| Ambient Humidity | 0 to 85% RH (no condensation) |
| Port Size | Rc1/4 |
| Display | 3-digit LED, character height 8 mm |
| Display Accuracy | ±2% F.S. (25 °C) (±0.14 MPa), temperature characteristics ±4% F.S. (0 to 50 °C) (±0.28 MPa) |
| Repeatability | ±0.02 MPa |
| Power Supply Voltage | 12 to 24 VDC ±10% (ripple rate 1% or less) |
| Current Consumption | 50 mA or less |
| Output Response Time | Approx. 5 msec |
| Switch Output | NPN transistor open collector output 2 points, max. 50 mA, voltage drop 2.4 V or less |
| Set Value Hold | EEPROM |
| Lead Wire | Oil resistant vinyl cable 4-conductor (0.2 mm²) 1 m |
| Weight | 0.36 kg |
| Mounting Orientation | Unrestricted |
| Degree of Protection | IP65 (dust proof / jet-proof) or equivalent |
