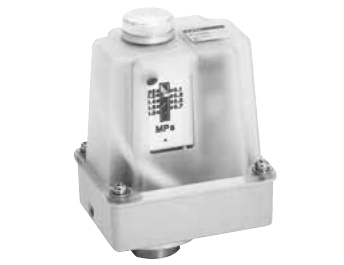

CPE is a mechanical pressure switch for coolant and similar uses. The pressure adjusting range is 0.05 to 0.8 MPa and the port is Rc1/4. It has a micro switch with 1ab contact and a degree of protection equivalent to IP65.
| Working Fluid | Coolant, air, other non-corrosive liquids, gases |
| Rated Pressure | 0 to 1.0 MPa |
| Proof Pressure | 1.5 MPa (water pressure) |
| Pressure Adjusting Range | 0.05 to 0.8 MPa |
| Fluid Temperature | 0 to 50 °C |
| Ambient Temperature | 0 to 50 °C |
| Port Size | Rc1/4 |
| Micro Switch | Z-15GD-B, contact array 1ab |
| Hysteresis | Set pressure 0.05 to 0.3 MPa: 0.04 MPa or less / set pressure 0.31 to 0.8 MPa: 0.1 MPa or less |
| Repeatability | ±0.02 MPa |
| Allowable Operation Frequency | 20 times/min |
| Rated Voltage | 100 VAC, 200 VAC, 24 VDC |
| Micro Switch Rating | 125 VAC / 250 VAC: resistance load 15 A, lamp load NC 3 A / NO 1.5 A (125 VAC), NC 2.5 A / NO 1.25 A (250 VAC), inductive load 15 A, electric motor load NC 3 A / NO 2.5 A (125 VAC), NC 3 A / NO 1.5 A (250 VAC) / 30 VDC: resistance load 6 A, lamp load NC 3 A / NO 1.5 A, inductive load 5 A, electric motor load NC 5 A / NO 2.5 A |
| Insulation Resistance | 100 MΩ or more (with 500 VDC megger) |
| Weight | 0.58 kg |
| Mounting Orientation | Vertical direction with the adjusting screw up |
| Degree of Protection | IP65 equivalent (dust proof / jet-proof) |
| Sealant | NBR (0) / FKM (B) |
