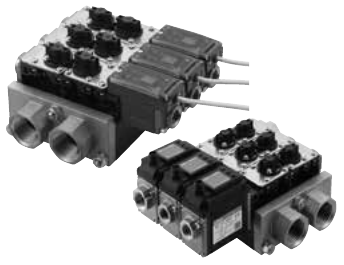

WXU-H/HC is an integrated unit for coolant water control that combines supply and return piping in one unit. It is used for water and hot water, and each circuit is controlled separately. It is configured with 2 to 10 stations, and the flow rate range depends on the sensor, from 0.5 to 60 L/min. The flow rate is adjusted by the valve on the return side, and a flow rate sensor can be fitted.
| Working Fluid | Water / hot water |
| Working Pressure | 0 to 0.7 MPa |
| Proof Pressure | 1.4 MPa (water pressure) |
| Fluid Temperature | WXU-H: 1 to 70 °C / WXU-HC: 1 to 85 °C |
| Ambient Temperature | 5 to 50 °C |
| Atmosphere | Place free of corrosive gas and explosive gas |
| Flow Rate Adjusting Range | 0 to 100% (water) (with closing function) |
| Station No. | 2 to 10 stations |
| Flow Rate Range | 0.5 to 32 L/min (with WFK3000 sensors: WFK3004 0.5 to 4, WFK3012 1.5 to 12, WFK3032 4.0 to 32 L/min) / with WFC sensors: WFC-150 0.5 to 15, WFC-600 2.0 to 60 L/min |
| Port Size | IN/OUT port Rc1, branching ports Rc3/8 or Rc1/2 |
| Sealant | FKM |
| Cv | Supply side (one station): 3.00 / return side (one station) by flow rate sensor: WFK3004 0.35, WFK3012 1.05, WFK3032 1.80, WFC-150 2.10, WFC-600 2.30 |
| Weight | In-block 0.67 kg, end block 0.63 kg, one-station assembly 0.76 kg (WFC equipped 1.00 kg) |
| Mounting Orientation | Unrestricted |
