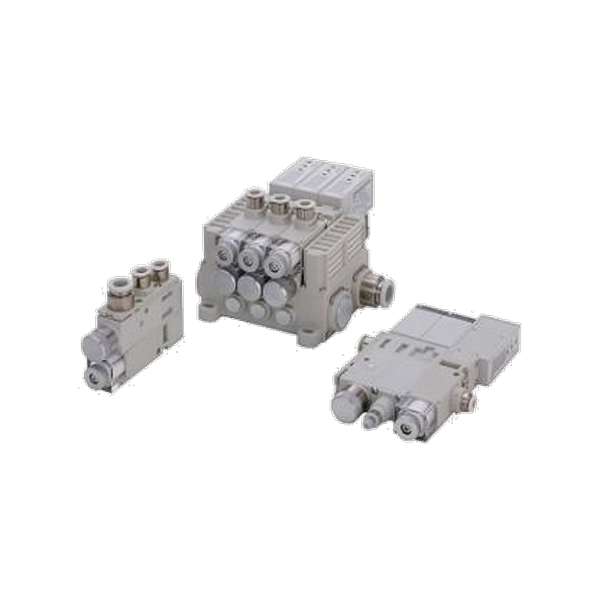

The VSK is a 16 mm wide integrated vacuum generator unit that combines an ejector, a vacuum break valve and a pressure switch in one body. Nozzle diameters range from 0.5 to 1.2 mm and it can be used as a single unit or on a manifold.
| Working Fluid | Air |
| Working Pressure | 0.25 to 0.7 MPa |
| Ambient Operating Temperature | 5 to 50 °C |
| Fluid Temperature | 5 to 50 °C |
| Lubrication | Not required |
| Nozzle Diameter | 0.5, 0.7, 1.0, 1.2 mm |
| Rated Supply Pressure | 0.35, 0.5 MPa |
| Valve Structure | Pilot operated poppet valve |
| Rated Voltage | 24 VDC, 100 VAC |
| Power Consumption | 0.8 W (24 VDC) / 1 VA (100 VAC) |
| Proof Pressure | 1.05 MPa |
