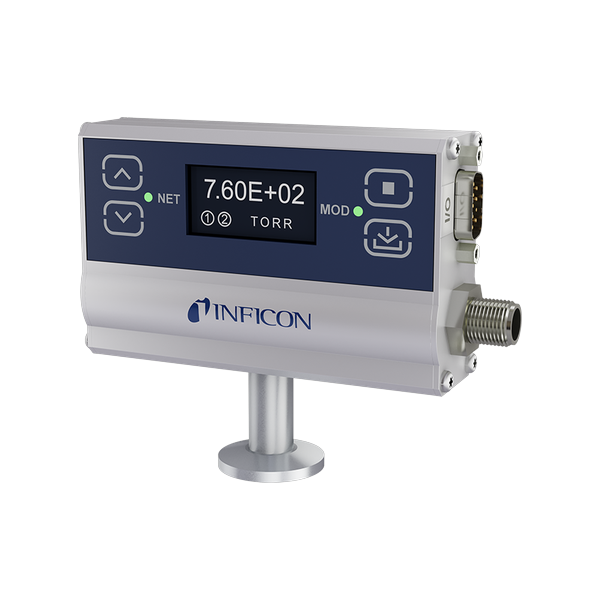

PGE500 DeviceNet is an all-in-one vacuum gauge with a convection-enhanced Pirani sensor, display and keypad. It has DeviceNet communication and 2 setpoint relays and reads accurately even near atmosphere.
| Measuring Range | 1.3×10⁻⁴ … 1333 mbar |
| Accuracy (530…1333mbar) | ±2.5% of reading |
| Operating Temperature (in operation) | 0 … +40°C |
| Supply Voltage | +12 … +26 V (dc) |
| Setpoint Relay | 2 (SPDT) |
| Interface (digital) | DeviceNet |
| Material (filament) | Platinum / gold-plated tungsten |
| Flange Connection | DN 16·25·40 ISO-KF / DN 16·40 CF-R / 4·8 VCR female / 1/8" NPT |
| DeviceNet Baud Rate | 125K, 250K or 500K (rotary switch) |
| Electrical Connection | D-Sub 9-pin male (setpoint relays) + 5-pin Micro (power, DeviceNet) |
| Bakeout | ≤150°C with electronics removed |
| Storage Temperature | -40…+70°C |
| Weight | 340 g |
