What vacuum pump capacity is this model used with?

It is used with vacuum pumps with a capacity of 1000 to 1500 L/min.

What are the connection sizes?

The flange is NW-40, and you can choose NW-25 or NW-40 for the lower flange.

Is Safety Vent available as an option?

Safety Vent is available as an option. It opens automatically at a pressure of 2bar or higher.

OMT VOMT-1500 Oil Mist Trap for Vacuum Pumps

Model: VOMT-1500

OMT VOMT-1500 is an oil mist trap for vacuum pumps with a capacity of 1000 to 1500 L/min. The lower oil level can be observed, and an oil return port can be connected.

Features

Lower oil level can be observed
Oil return port connection available
Selectable flange sizes
Quick-clamp fastening
Safety Vent option available

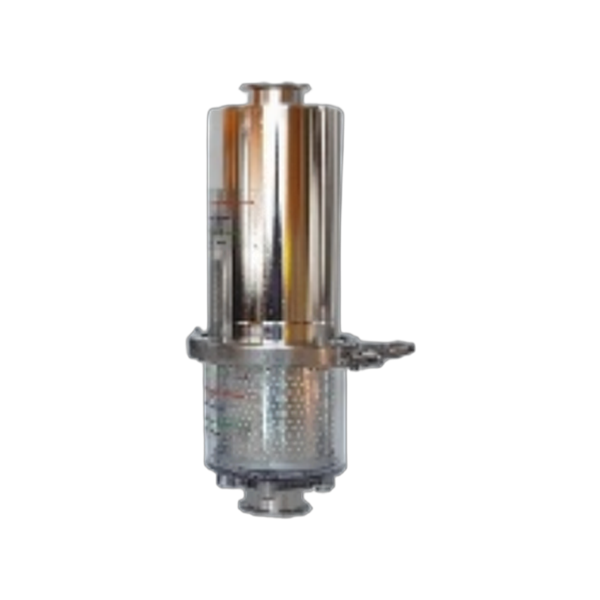

OMT VOMT-1500 Oil Mist Trap for Vacuum Pumps VOMT-1500

OMT VOMT-1500 Oil Mist Trap for Vacuum Pumps VOMT-1500 2

Specifications

Application	Oil mist trap for vacuum pumps
Vacuum pump capacity	1000 to 1500 L/min
Filter Size	ø90 × 225 mm
Outer Dimensions	ø130 × 325 mm (including clamp)
End Connection	NW-40
Note	Lower flange: choose NW-25 or NW-40
Fastening	Quick-clamp type
Cover Material	SS304
Gasket	Silicone
Filter configuration	VOMF-500B + VOMF-1000
Filter Material	Glass fiber
Option	Safety Vent (opens automatically at a pressure of 2bar or higher)

Frequently Asked Questions

What vacuum pump capacity is this model used with?: It is used with vacuum pumps with a capacity of 1000 to 1500 L/min.
What are the connection sizes?: The flange is NW-40, and you can choose NW-25 or NW-40 for the lower flange.
Is Safety Vent available as an option?: Safety Vent is available as an option. It opens automatically at a pressure of 2bar or higher.
