What vacuum pump capacity is this model used with?

It is used with vacuum pumps with a capacity of 1500 to 2000 L/min.

What are the connection sizes?

The flange is NW-40, and you can choose NW-25 or NW-40 for the lower flange.

Is Safety Vent available as an option?

Safety Vent is available as an option. It opens automatically at a pressure of 2bar or higher.

OMT VOMT-2000 Oil Mist Trap for Vacuum Pumps

Model: VOMT-2000

OMT VOMT-2000 is an oil mist trap for vacuum pumps with a capacity of 1500 to 2000 L/min. The lower oil level can be observed, and an oil return port can be connected.

Features

Lower oil level can be observed
Oil return port connection available
Selectable flange sizes
Quick-clamp fastening
Safety Vent option available

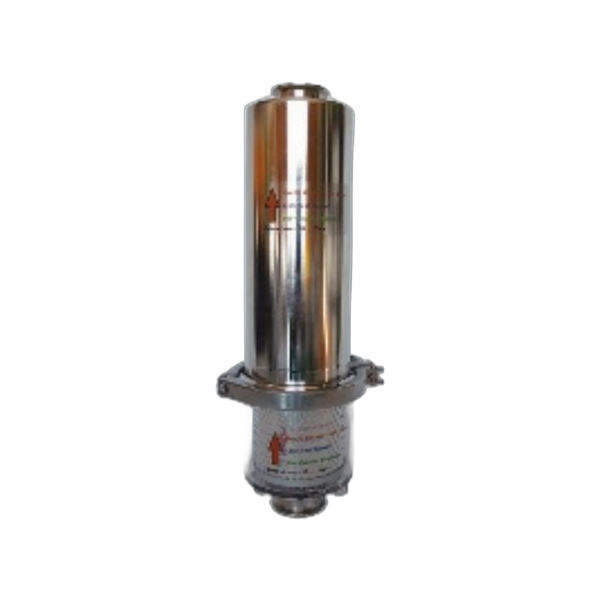

OMT VOMT-2000 Oil Mist Trap for Vacuum Pumps VOMT-2000

OMT VOMT-2000 Oil Mist Trap for Vacuum Pumps VOMT-2000 2

Specifications

Application	Oil mist trap for vacuum pumps
Vacuum pump capacity	1500 to 2000 L/min
Filter Size	ø90 × 300 mm
Outer Dimensions	ø130 × 398 mm (including clamp)
End Connection	NW-40
Note	Lower flange: choose NW-25 or NW-40
Fastening	Quick-clamp type
Cover Material	SS304
Filter configuration	VOMF-1000B + VOMF-1000
Filter Material	Glass fiber
Option	Safety Vent (opens automatically at a pressure of 2bar or higher)

Frequently Asked Questions

What vacuum pump capacity is this model used with?: It is used with vacuum pumps with a capacity of 1500 to 2000 L/min.
What are the connection sizes?: The flange is NW-40, and you can choose NW-25 or NW-40 for the lower flange.
Is Safety Vent available as an option?: Safety Vent is available as an option. It opens automatically at a pressure of 2bar or higher.
