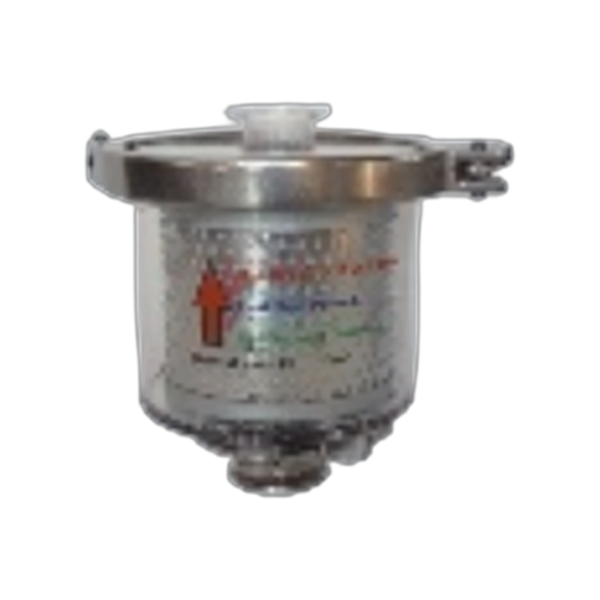

OMT VOMT-250 is an oil mist trap for vacuum pumps with a capacity of 50 to 500 L/min. The interior can be observed, and an oil return port can be connected.
Features
Interior can be observed
Oil return port connection available
Selectable flange sizes
Quick-clamp fastening
Heat-deformation sticker attached
Specifications
Application
Oil mist trap for vacuum pumps
Vacuum pump capacity
50 to 500 L/min
Filter Size
ø90 × 75 mm
Outer Dimensions
ø130 × 145 mm (including clamp)
End Connection
NW-16, NW-25, NW-40
Note
Cover NW-25
Fastening
Quick-clamp type
Gasket
Silicone
Filter configuration
VOMF-500B
Filter Material
Glass fiber
Frequently Asked Questions
What vacuum pump capacity is this model used with?
It is used with vacuum pumps with a capacity of 50 to 500 L/min.
What are the connection sizes?
You can choose NW-16, NW-25, or NW-40, and the cover uses NW-25.
