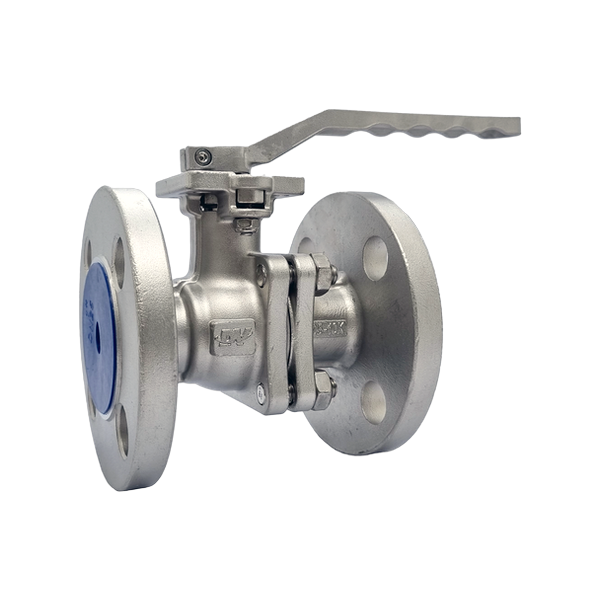

2PC Ball Valve Flange (SUS304, Manual, 10K)

Model: PMV-22

PMV-22 is a ball valve combining a precision-cast SUS304 flanged 2PC body with a manual handle. With a 10K flange rating and an ISO5211 direct mounting pad as standard specifications, it is used for manual shutoff lines in the chemical, plant, water/wastewater, and construction sectors.

Features

2PC Ball Valve Flange (SUS304, Manual, 10K) PMV-22

Specifications

End ConnectionRF
MaterialSS304
Ball/Disc MaterialSS304
Seat MaterialPTFE
PressureJIS 10K
OperationLever
OriginSouth Korea, China
Size015A, 020A, 025A, 032A, 040A, 050A, 065A, 080A, 100A, 125A, 150A, 200A, 250A, 300A, 040A(14mm), 065A(14mm), 100A(17mm)

Frequently Asked Questions

How do I choose between flanged and threaded connections?
Flanged connections are advantageous for large-bore lines, high-pressure applications, and sections requiring frequent disassembly and reassembly. Threaded connections are simpler to install and more cost-effective for small-bore, low-pressure lines. Generally, flanged connections are chosen for 50A and above or Class 10K and above; threaded connections are preferred for 40A and below at low pressure.
What flange standard is used?
The default flange standard for PMV-22 is JIS 10K. Alternative international standards including KS, ANSI, and PN are available upon request. Please share the flange standard and bolt-hole pattern of your existing line and we will prepare the appropriate specification.
Can the valve be converted to actuated operation later?
PMV-22 includes an ISO5211 direct mounting pad as standard, so an initially manual installation can later be upgraded to pneumatic or electric actuation by simply attaching an actuator - no body replacement required. This makes it well suited for projects that require phased automation.
How do I choose between 2PC and 3PC?
2PC has fewer parts and fewer leakage points and is cost-competitive, making it the standard choice for general shutoff lines. 3PC allows seat and ball servicing without dismantling the pipeline, which is advantageous for lines with frequent maintenance.
