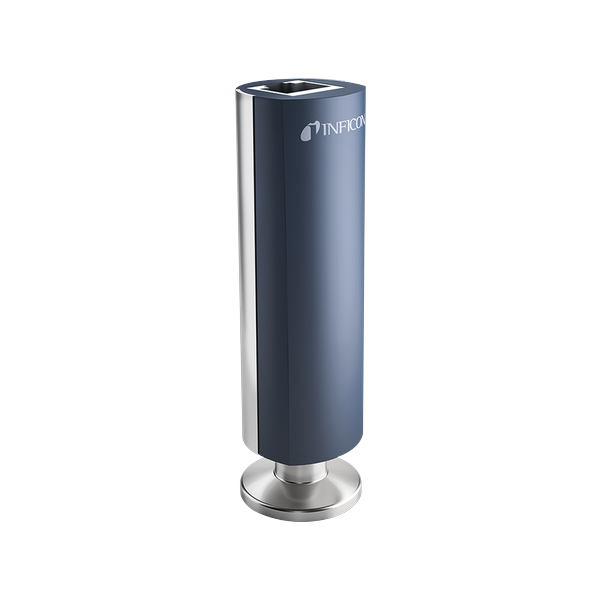

Porter CDG020D is a compact capacitance diaphragm vacuum gauge that measures absolute pressure regardless of gas type. Its alumina sensor stays stable over time and needs little maintenance, for industrial uses such as coating, sterilization and food packaging.
| Full Scale | 10…2000 Torr/mbar |
| Accuracy (3CA3) | 1% of reading |
| Supply Voltage | +13…+30 V(dc) |
| Protection Rating | IP 40 |
| Operating Temperature (in operation) | 0…+70°C |
| Bakeout | Flange, not operating ≤110℃ |
| Response Time | 100 ms |
| Weight | 80…159 g |
| Storage Temperature | -20…+85℃ |
| Humidity | <80% RH non-condensing |
