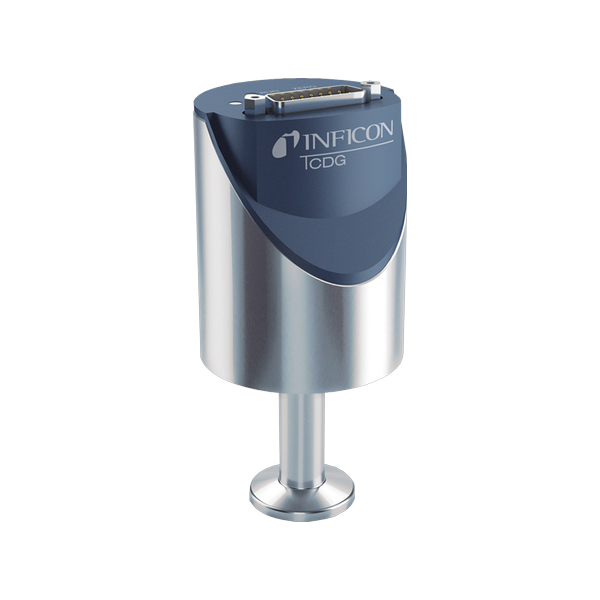

SKY CDG025D is a temperature compensated capacitance diaphragm vacuum gauge for ambient use. Its corrosion-resistant ceramic sensor holds its zero through millions of pressure cycles and settles quickly after power-on, for semiconductor equipment.
| Full Scale | 1000/1100…200 / 100…5 / 2…0.5 / 0.25 / 0.1 Torr/mbar |
| Accuracy | 0.2 % of reading (1000/1100...200, 100...5, 2...0.5) / 0.25 % of reading (0.25) / 0.5 % of reading (0.1) |
| Supply Voltage | +14…+30 V (dc) |
| Electrical Connection | D-sub, 15-pin, male |
| Protection Rating | IP 30 |
| Operating Temperature | +5…+50℃ |
| Bakeout | Flange, not operating ≤110℃ |
| Storage Temperature | -40…+65℃ |
| Response Time | 30 ms (1000/1100…0.25), 130 ms (0.1) |
| Weight | 285…342 g |
