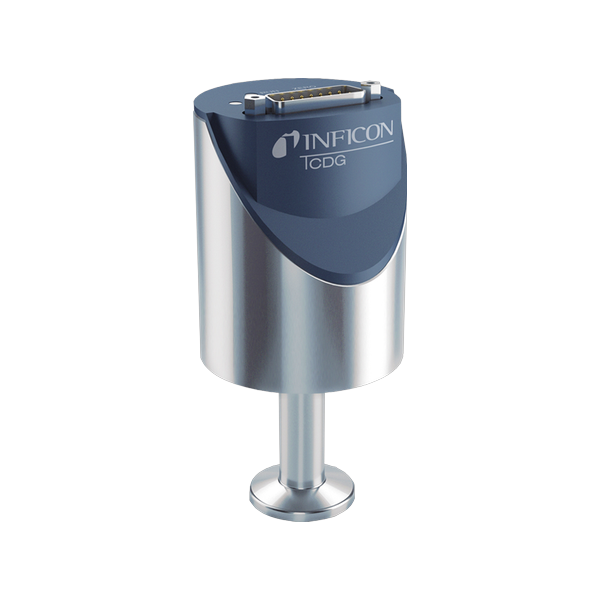

INFICON SKY CDG025D-X3 Capacitance Diaphragm Gauge

SKY CDG025D-X3 is a temperature compensated capacitance diaphragm vacuum gauge for ambient use. Its corrosion-resistant ceramic sensor is doubly protected against contamination, and it has 2 setpoints and RS232 communication.

INFICON SKY CDG025D-X3 Capacitance Diaphragm GaugeINFICON SKY CDG025D-X3 Capacitance Diaphragm Gauge 2

Specifications

Full Scale1000/1100…200 / 100…5 / 2…0.5 / 0.25 / 0.1 Torr/mbar
Accuracy0.2% of reading (1000/1100…200, 100…5, 2…0.5 range) / 0.25% (0.25) / 0.5% (0.1)
Supply Voltage+14…+30 V(dc)
Electrical ConnectionD-Sub, 15-pin, male
Protection RatingIP 30
Operating Temperature+5…+50℃
BakeoutFlange, not operating ≤110℃
Storage Temperature-20…+65℃
Response Time30 ms (1000/1100…0.25), 130/30 ms (0.1, latter for pressure-control type only)
Weight285…342 g
Setpoints2
