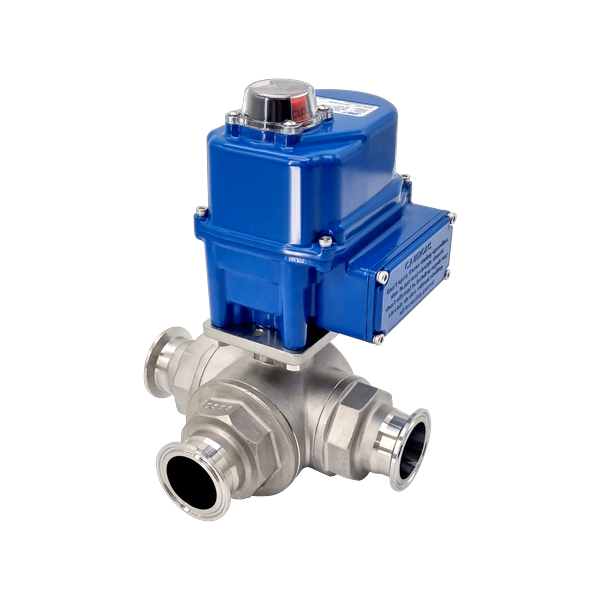

Sanitary 3WAY Electric Ball Valve (SUS316)

Model: PSVE-12

PSVE-12 is a sanitary ball valve featuring a precision-cast SUS316 CF8M body combined with a 3WAY ball and an electric actuator. It supports two port configurations (L/T) and multiple rotation-angle arrangements (L3/T3/T4/T5/T6), with 3A sanitary standard design principles and an ISO5211 direct mounting pad as standard specifications. It is used for 3-way remote automatic switching lines in pharmaceutical, biotechnology, chemical, food and beverage, and secondary battery processes.

Features

Sanitary 3WAY Electric Ball Valve (SUS316) PSVE-12

Frequently Asked Questions

What options can be added to the electric actuator?
Several options are available by application. First, a high-speed open/close specification of about 1 second is available for small-bore valves, suitable for fast ON/OFF repetition. Second, a 4-20 mA proportional control specification is available for sections requiring continuous flow control, and third, explosion-proof actuator specifications are available for hazardous areas handling flammable solvents.
What do the T3, T4, T5, T6 rotation-angle arrangements mean?
T-port 3-way ball valves can have various flow patterns based on combinations of internal flow-path shape and rotation angle. T3 to T6 are configuration numbers indicating which inlet flows to which outlet. Selection varies by process sequence, so tell us the required sequence and we will review the appropriate arrangement together.
To what extent are 3A design principles applied?
PSVE-12 is manufactured reflecting the surface finish, dead-space minimization, and cleanability principles required by the 3A sanitary standard. If your project requires issuance of an official certificate, please notify us in advance and we will advise on availability.
What is the valve state when power supply is interrupted?
Standard electric actuators retain the current position when power is interrupted. If automatic return is needed upon power loss, an actuator specification with battery backup or spring-return functionality is required, so tell us the fail-safe requirements and we will advise on the availability of such options.
