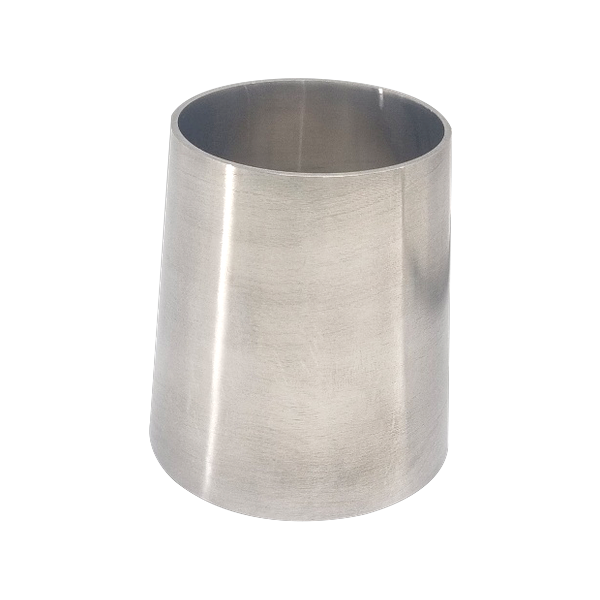

Sanitary Concentric Reducer (SUS304, Weld)

Model: PSF-28

PSF-28 is a weld-type concentric reducer used to change the pipe diameter in sanitary lines. With a precision-cast SUS304 body and standard sanitary-piping polishing, it is used for diameter-transition points in fixed piping for pharmaceutical, biotechnology, chemical, food and beverage, and secondary battery processes.

Specifications

Frequently Asked Questions

How do I choose between weld-type and ferrule-type reducers?

Weld type is used on main piping built as a continuously welded structure, offering excellent long-term hermeticity and minimized dead space. Ferrule type (double-ferrule) allows tri-clamp disconnection and suits sections with frequent disassembly and reassembly. Use weld type for fixed main piping and ferrule type at disconnection points.

How do I choose between concentric and eccentric reducers?

A concentric reducer has the centerlines of both pipes aligned and is mainly used where flow symmetry is important or on vertical piping. An eccentric reducer has one face kept parallel to the pipe, used on horizontal piping to prevent liquid from pooling at the bottom or air pockets from collecting at the top.

Is there anything to watch out for during welding?

On hygienic lines, the standard practice is to apply orbital welding under an argon back-purge environment to prevent oxide scale on the inner surface. Internal cleaning and passivation are then required to meet hygienic-line cleanliness. This product is delivered with the inner surface already polished, so be careful not to contaminate the interior during on-site welding.

Which is appropriate, SUS304 or SUS316L?

SUS304 is the standard for most general food, beverage, and hygienic lines. SUS316L is generally selected for lines with high chloride concentrations, lines containing strong organic acids, and GMP-grade pharmaceutical and biotech processes for corrosion resistance and regulatory compliance.
