Sanitary Tee (SUS304, 3 Ferrules)

Model: PSF-23

PSF-23 is a sanitary tee fitting with three machined ferrules, enabling tri-clamp connections at every port. With a precision-cast SUS304 body and standard sanitary-piping polishing, it is used for branching points in removable sanitary lines in pharmaceutical, biotechnology, chemical, food and beverage, and secondary battery processes.

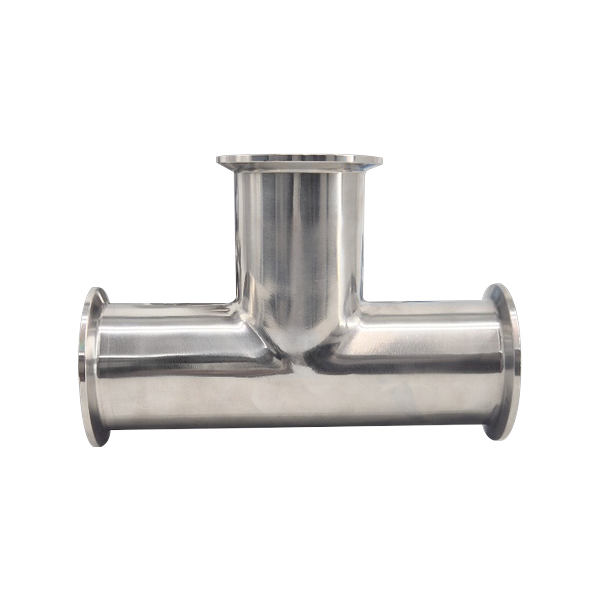

Sanitary Tee (SUS304, 3 Ferrules) PSF-23

Frequently Asked Questions

How do I choose between a 3-ferrule tee and a weld-type equal tee?
A 3-ferrule tee allows tri-clamp connection on all three ports, making disassembly and reassembly convenient, but the three joints introduce relatively more dead space. A weld-type equal tee (such as PSF-22) minimizes dead space but requires re-welding for disassembly. Choose a 3-ferrule tee for branches that are frequently disconnected, and a weld type for fixed main lines.
What is the difference between an equal tee and a reducing tee?
An equal tee is a basic branch configuration where all three ports have the same diameter. A reducing tee has one port machined to a smaller diameter than the other two. PSF-23 is an equal tee. When a different-diameter branch configuration is required, a separate reducing tee specification is provided.
Which is appropriate, SUS304 or SUS316L?
SUS304 is the standard for most general food, beverage, and hygienic lines. SUS316L is recommended for lines with high chloride concentrations, lines containing strong organic acids, and GMP-grade pharmaceutical and biotech processes.
How is the size selected?
Sanitary tees are supplied in tri-clamp standard sizes (1", 1.5", 2", 3", etc.). Tell us the main-line size and the clamp specification to be connected, and we will prepare a matching specification.
